$310.00
In stock
System Explained
Total outer length is 8cm less than two individual bays combined, as one upright is shared between bays in a longspan configuration.
2-bay longspan — 3 uprights, 1 shared between bays. Each additional bay adds only one upright.
Note: Bay shelf lengths are not necessarily equal — check A and B before planning your space. Bay order can be configured in any sequence as desired.
1 Upright FrameHeavy-gauge steel post with pre-punched slots every 80mm. Determines the overall height and allows tool-free shelf tier adjustment. | 2 Horizontal BeamCold-rolled steel beams hook into upright slots for boltless assembly. Safety pins lock beams in place to prevent upward movement, carrying the full load across the bay length. |
3 Foot PlateSpreads load across the floor. Pre-drilled for optional floor anchoring. | A Bay 1 LengthBay 1 length — 1500mm. Length may differ from Bay 2 — see dimension above. |
B Bay 2 LengthBay 2 length — 2000mm. Length may differ from Bay 1 — see dimension above. | T Total LengthCombined external length across both bays. |
S Tier SpacingDefault gap between shelf levels. Adjustable in 80mm increments — no tools needed. |
What You're Getting

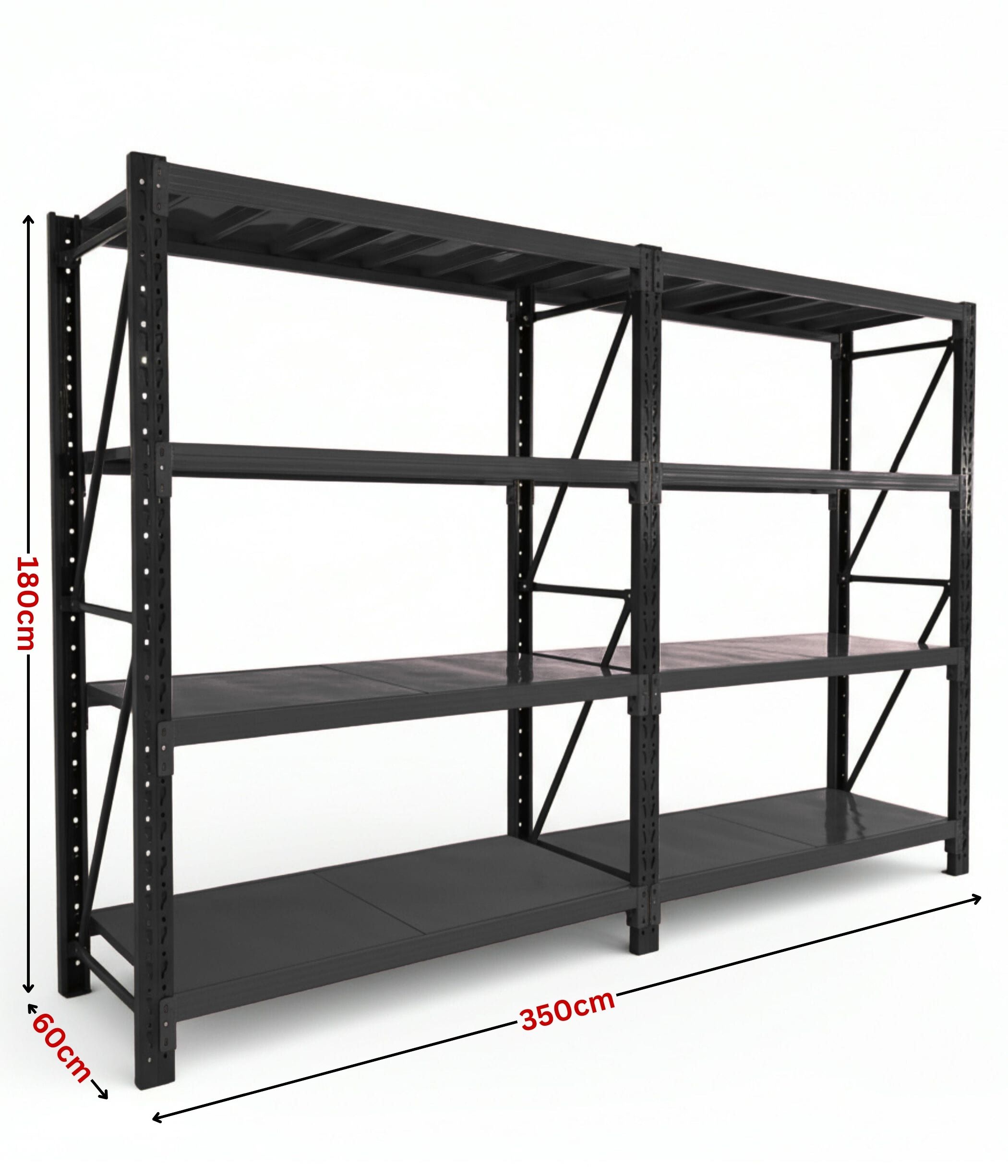

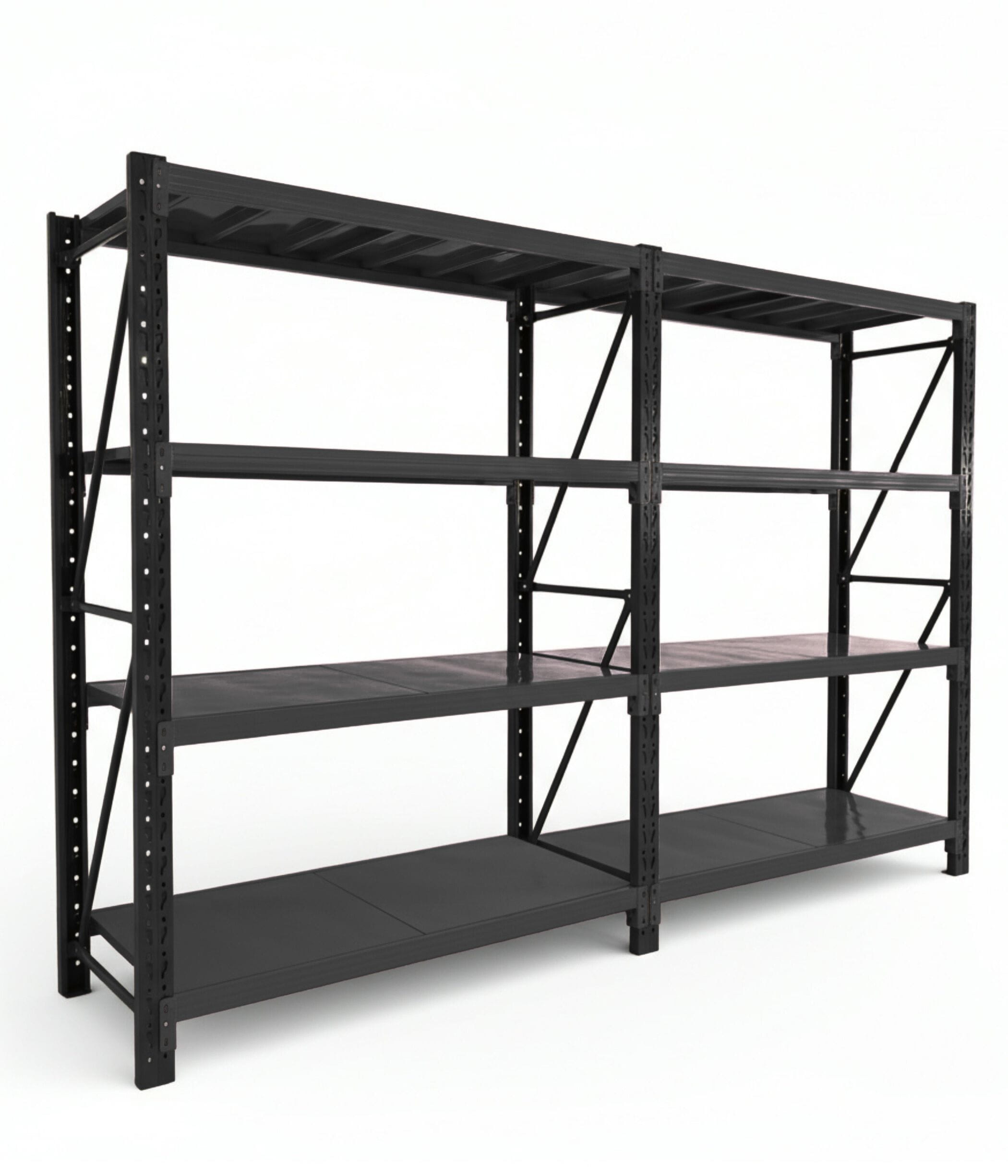

The 1800mm x 3500mm x 600mm (1.8m x 3.5m x 0.6m) is a 2-bay longspan shelving system designed for garages, sheds, warehouses, workshops and retail stockrooms. It's engineered to carry serious weight — 200kg per shelf level, while remaining quick to assemble and simple to reconfigure as your needs change.
Built with the same structural logic as industrial warehouse racking, this system uses a heavy-duty, bolt-together frame. Rather than just a standard shelf, you're investing in a modular, load-bearing system designed for easy expansion as your storage needs grow.
Who It's For
🏠 Home Garage Tools, parts, seasonal gear, camping equipment, bins | 🏭 Workshop Materials, hardware, machinery parts, safety equipment | 📦 Warehouse Cartons, pallets of small goods, overflow inventory |
🛒 Retail Stock rotation, display, flat goods storage | 🛖 Shed Garden equipment, tools, chemicals, seasonal items | 🏢 Office / Archive Document boxes, equipment, IT hardware |
Why It Works
✓
Tool-free height adjustment. Beams hook directly into the upright slots — lift and relocate in under a minute. No spanner, no bolts, no downtime.
✓
Expandable by design. Adjacent bays share an upright, so the system grows with you.
✓
Genuine load rating. Rated to 200kg uniformly distributed load per shelf. Check the specifications table above.
✓
Powder-coated finish. The electrostatic coating resists rust, chipping, and cleaning products. Holds up in outdoor sheds and industrial environments.
✓
One-person assembly. Most configurations go together in under 30 minutes. Step-by-step instructions included — no specialist skills needed.
Before You Buy
Shelving unit ships as flat-pack components: 3 upright frames, 16 horizontal beams, 16 shelf layer boards, and all necessary hardware. Everything needed to assemble the full 2-bay unit is included.
Assembly can be done by one person and requires approximately 30 minutes. The frame bolts together; beams hook in tool-free; layer boards drop onto the beams. No welding, no drilling into the unit, no specialist skills required.
Anchoring: Foot plates are pre-drilled for optional floor anchors — strongly recommended in commercial settings.
