$460.00
In stock
| Height | |
|---|---|
| Length | |
| Depth | |
| Colour | |
| Load | |
| Layers | |
| Material |
System Explained
Total outer length is 16cm less than three individual bays combined, as two uprights are shared between bays in a longspan configuration.
3-bay longspan — 4 uprights, 2 shared between bays. Each additional bay adds only one upright.
1 Upright FrameHeavy-gauge steel post with pre-punched slots every 80mm. Determines the overall height and allows tool-free shelf tier adjustment. | 2 Horizontal BeamCold-rolled steel beams hook into upright slots for boltless assembly. Safety pins lock beams in place to prevent upward movement, carrying the full load across the bay length. |
3 Foot PlateSpreads load across the floor. Pre-drilled for optional floor anchoring. | A Bay 1 LengthBay 1 length — 1500mm. Length may differ from Bays 2 and 3 — see dimension above. |
B Bay 2 LengthBay 2 length — 1500mm. Length may differ from Bays 2 and 3 — see dimension above. | C Bay 3 LengthBay 3 length — 1500mm. Length may differ from Bays 2 and 3 — see dimension above. |
T Total LengthCombined external length across all three bays. | S Tier SpacingDefault gap between shelf levels. Adjustable in 80mm increments — no tools needed. |
What You're Getting

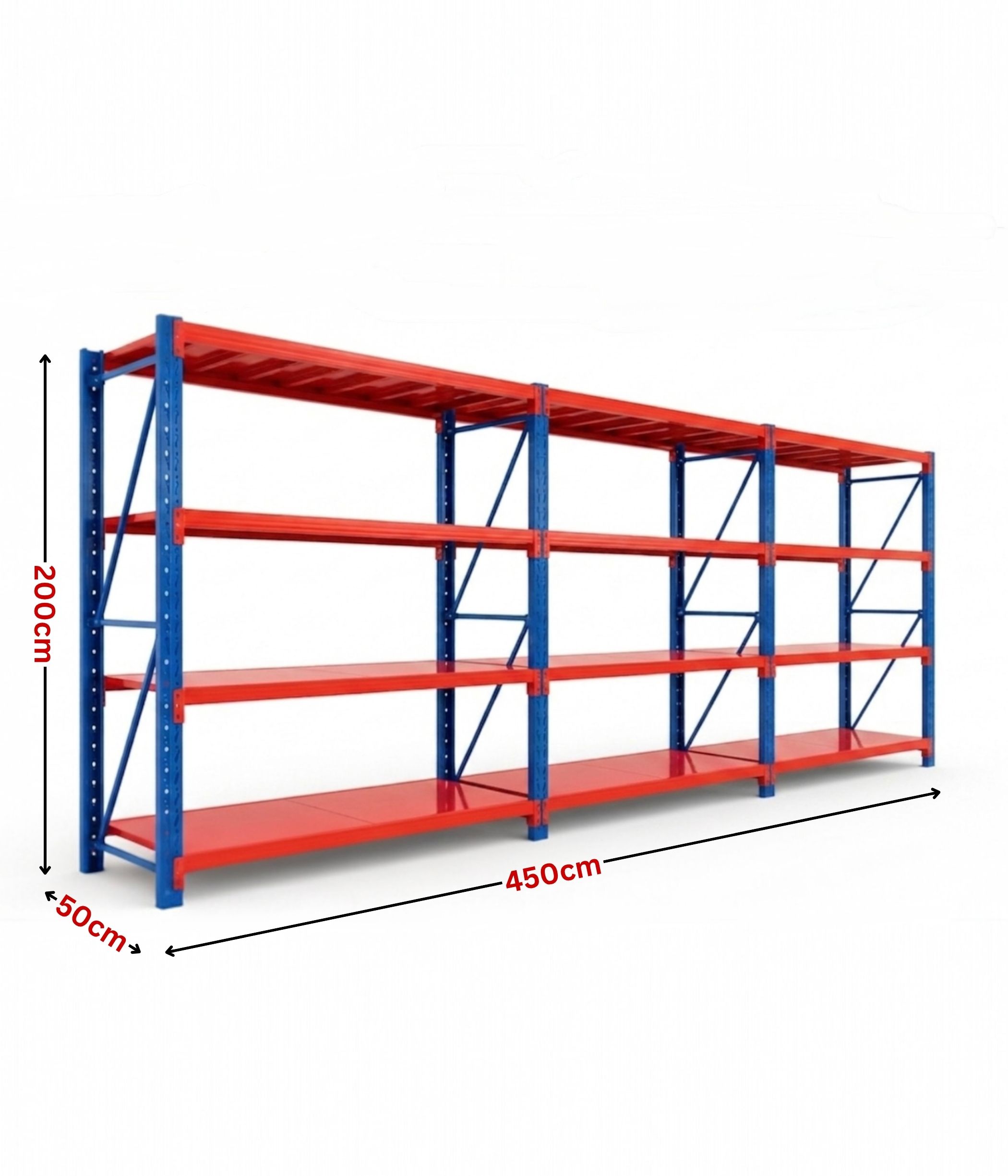

The 2000mm x 4500mm x 500mm (2.4m x 4.5m x 0.6m) is a 3-bay longspan shelving system designed for garages, sheds, warehouses, workshops and retail stockrooms. It's engineered to carry serious weight — 200kg per shelf level, while remaining quick to assemble and simple to reconfigure as your needs change.
Built with the same structural logic as industrial warehouse racking, this system uses a heavy-duty, bolt-together frame. Rather than just a standard shelf, you're investing in a modular, load-bearing system designed for easy expansion as your storage needs grow.
Who It's For
🏠 Home Garage Tools, parts, seasonal gear, camping equipment, bins | 🏭 Workshop Materials, hardware, machinery parts, safety equipment | 📦 Warehouse Cartons, pallets of small goods, overflow inventory |
🛒 Retail Stock rotation, display, flat goods storage | 🛖 Shed Garden equipment, tools, chemicals, seasonal items | 🏢 Office / Archive Document boxes, equipment, IT hardware |
Why It Works
Tool-free height adjustment. Beams hook directly into the upright slots — lift and relocate in under a minute. No spanner, no bolts, no downtime.
Expandable by design. Adjacent bays share an upright, so the system grows with you.
Genuine load rating. Rated to 200kg uniformly distributed load per shelf. Check the specifications table above.
Powder-coated finish. The electrostatic coating resists rust, chipping, and cleaning products. Holds up in outdoor sheds and industrial environments.
One-person assembly. Most configurations go together in under 45 minutes. Step-by-step instructions included — no specialist skills needed.
Before You Buy
Shelving unit ships as flat-pack components: 4 upright frames, 24 horizontal beams, 24 shelf layer boards, and all necessary hardware. Everything needed to assemble the full 3-bay unit is included.
Assembly can be done by one person and requires approximately 45 minutes. The frame bolts together; beams hook in tool-free; layer boards drop onto the beams. No welding, no drilling into the unit, no specialist skills required.
Anchoring: Foot plates are pre-drilled for optional floor anchors — strongly recommended in commercial settings.
